5 Gallon Water Rinsing Filling Machine Capping 3 In 1 500BPH

Name: 5 Gallon Water Rinsing Filling Machine Capping 3 In 1 500BPH
Brand: Aquatrin
Price: 2000 USD

China 5 Gallon Water Rinsing Filling Machine Capping 3 In 1 500BPH wholesale

Brand Name : Aquatrin

Model Number : QGF

Certification : ISO CE

Place of Origin : China

MOQ : 1unit

Price : USD2000-60000 1Set

Payment Terms : T/T

Supply Ability : 10units per month

Delivery Time : 45days

Packaging Details : wooden package

Name : 5gallon filling machine

Warranty : 2 years

After Warranty Service : Video technical support, Online support, Spare parts, Field maint

Packaging Type : Bottles, Barrel

Machinery Capacity : 500BPH, 100BPH, 200BPH

Core Components : Motor, Pressure vessel, Pump, PLC

Contact Now

Machines Details
To improve and ensure product quality as the goal,
to provide customers with perfect services and high-quality equipment,
We believe “all steps in production are quality control processes”.

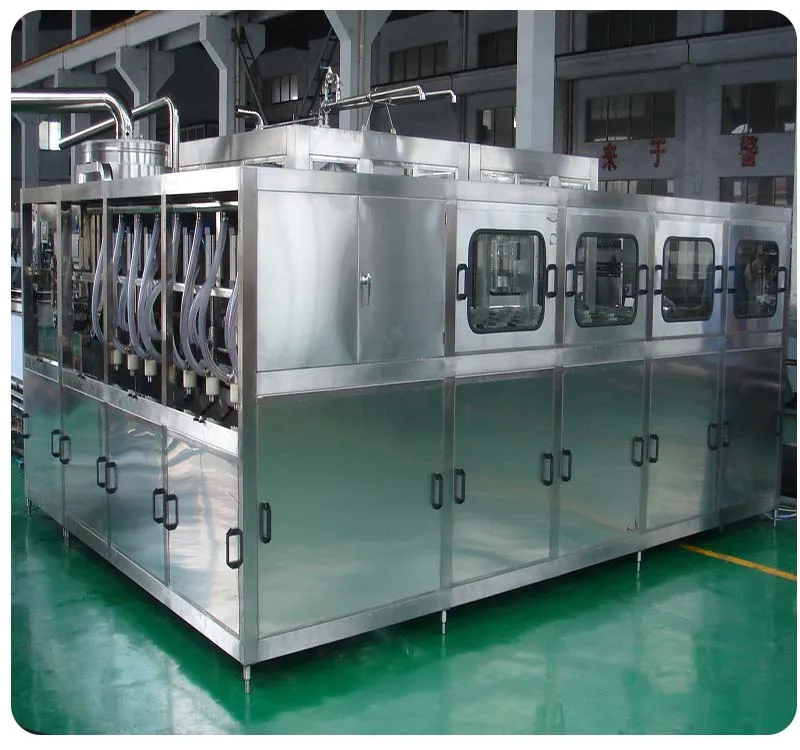

Main Machine Features1/Shape structure adopted concave and convex shape,perfect appearance also reduces the leakage. 2/The thickness of the stainless steel plate which used for 600bph is 3mm. 3/Tank and the heating pipe in tank are removable which become more clean sanitation.

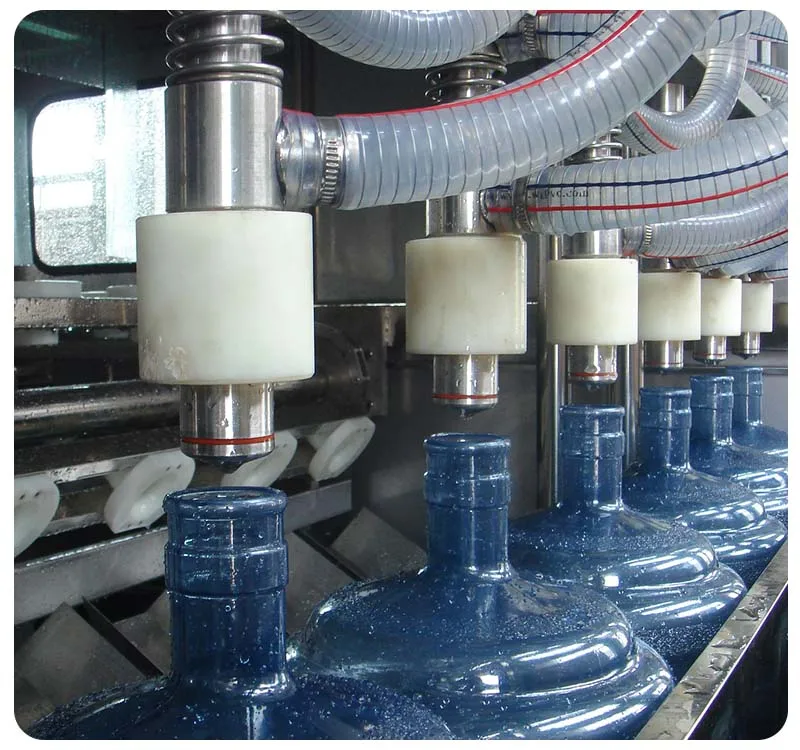

Filling Part Features 1/Uploading and dropping barrels changed from 45 degree to translatory which is more stable. 2/Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.
Capping Parts1/Liquid level difference is controlled in 1cm. 2/Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water. 3/Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component.

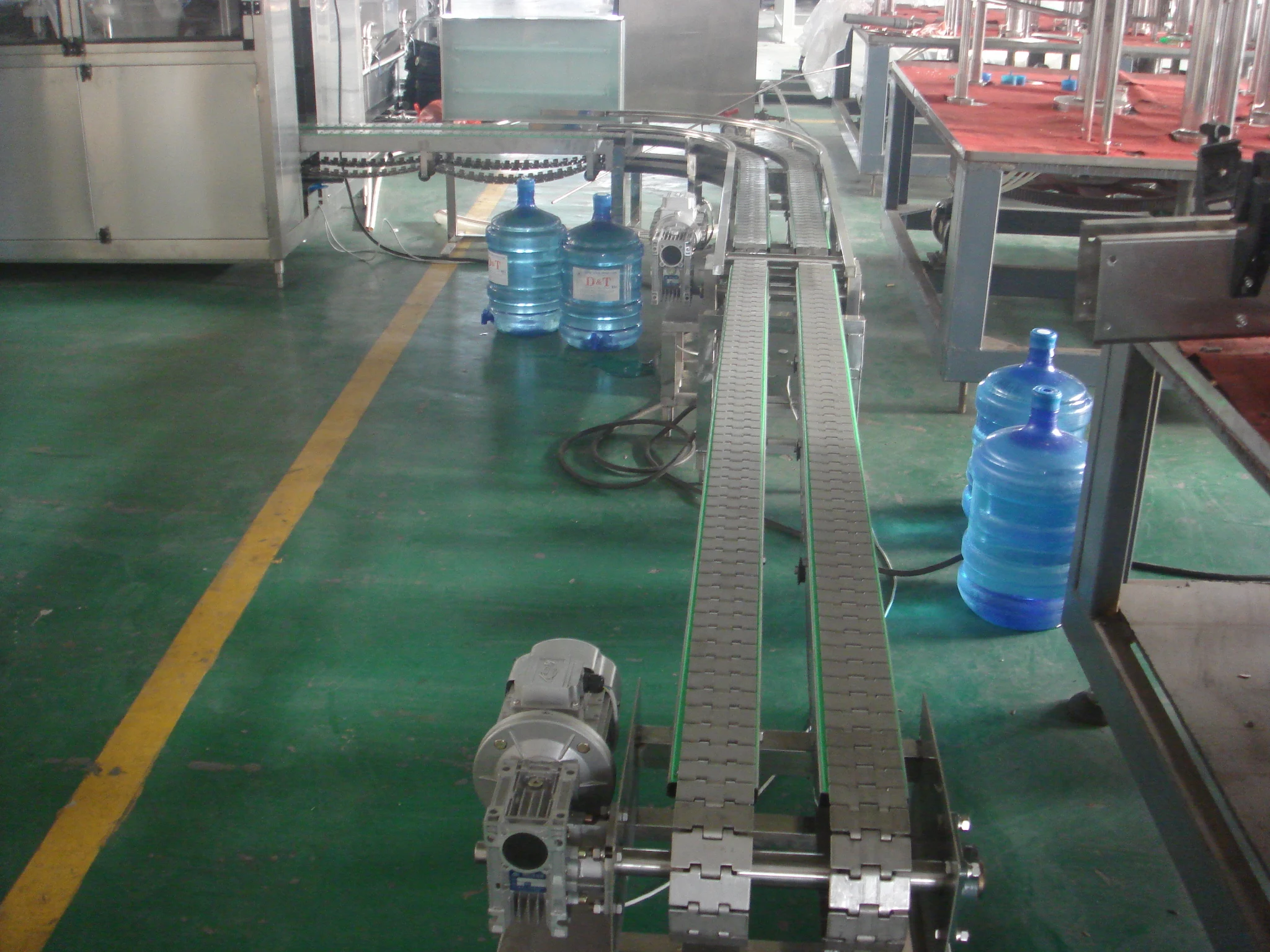

Flat Conveyor 1/Energy saving.,High efficient,Adapt to customer factory layout. 2/Special lubrication system, keep products clean, health, safety. 3/ Extended service life4/Electric eyes design keep whole line running safety and quickly 5/Overload protection mechanism to effectively ensure the safety of the machine

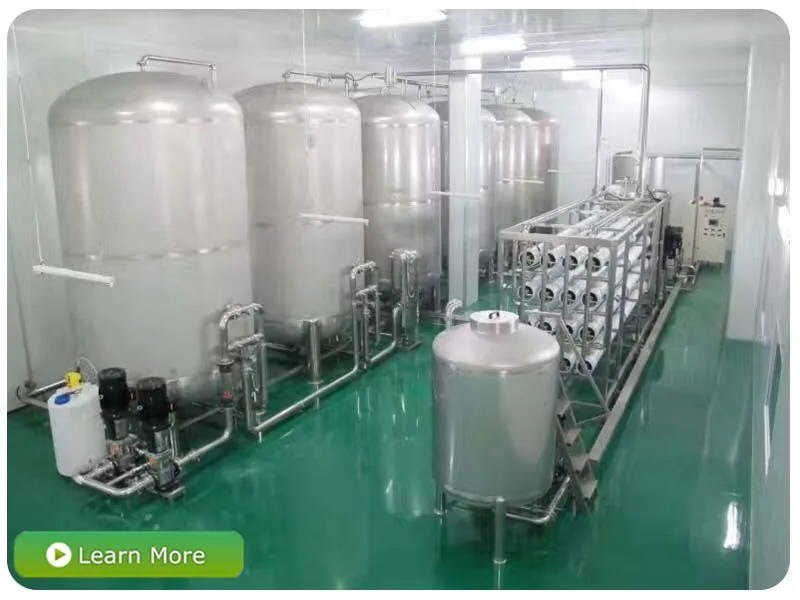

Water treatment/purification system
● Raw water tank + Raw water pump● Silica sand filter + Active carbon filter + Sodium ion ex-changer + Precision filter + Security filter
●  Reverse Osmosis (one level)
● UV sterilizer
● Finished water tank + Pure water pump
● Stainless steel high pressure film shell
● All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
● Online type pressure auto self-protection device
● Online type electricity indicator (with stable compensation)
● System safe protecting and alarm system
● System frame

Bottle Blow Molding Machine
● Production flexibility: Up to 200 different equipment size configurations from one platform● Top quality: Electrical stretching for bottle integrity, full material distribution control and performance
● Fast output: Boosted uptime and speed (up to 2,400 bottles/mould/hour)
● Efficient consumption: Up to 45 % less electricity and 35 % less compressed air

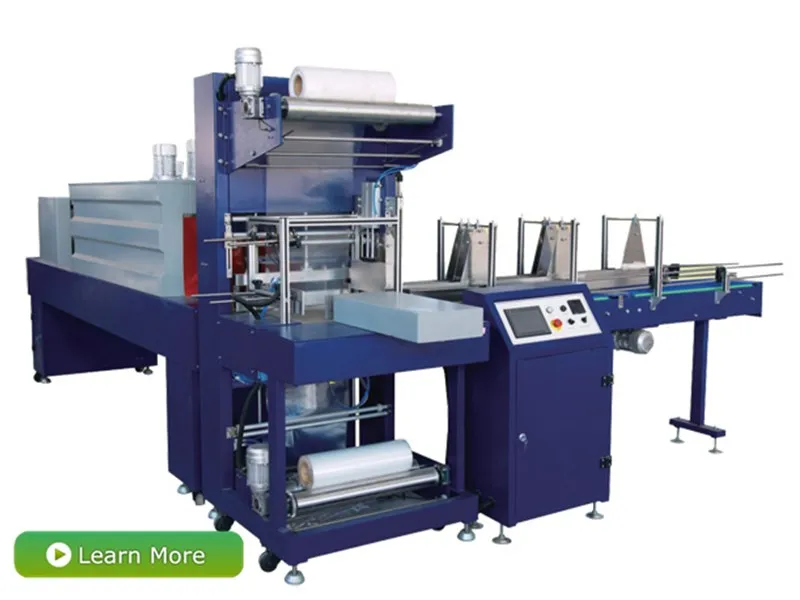

Automatic Shrink Wrapping Machine
● Pack consistency and quality● Gentle and precise infeed configuration
● Flexible handling of multiple SKUs
● Automatic pack and raw material changeovers
● Heat, glue, carton and film optimisation
● Whether you choose shrink-wrap film, nested packaging or packaging carton, we will gently feed the bottles to ensure durable and economical packaging.

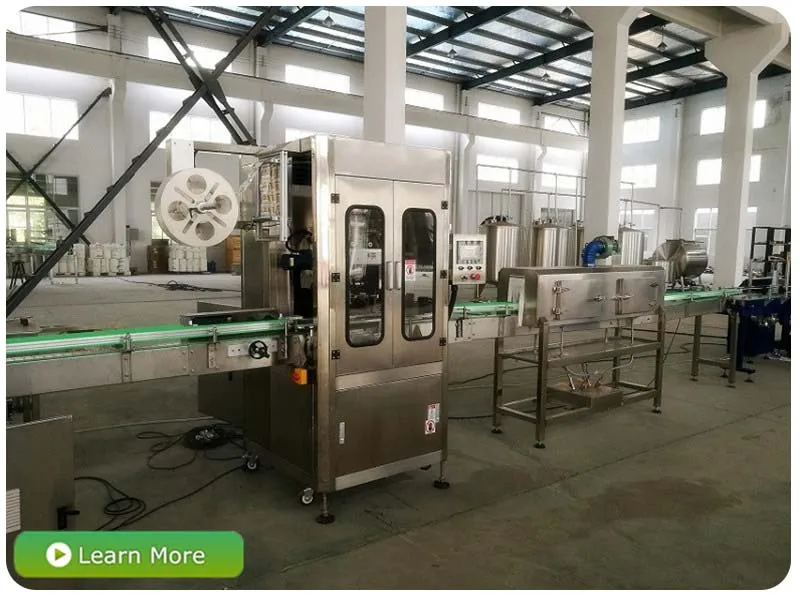

Automatic Sleeve Labeling Machine
● Boasting four carousel sizes, up to three labelling stations and 24 configurations, can generate outputs of up to 72,000 containers per hour, when standalone, at an efficiency rate of 98%.● Greater performance and ergonomics
● Boasted production uptime
● Sustainable and quality production


  	 			Mold
 			QGF-150 			QGF-300 			QGF-450 			QGF-600 			QGF-900 			QGF-1200
 			Filling heads 			1
 			3 			5 			6 			9 			12
 			Capacity
(B/H)
 			100 			300 			450 			600 			900 			1200
 			Capacity
(B/H)
 			18.9L

 			Barrel size
(mm)
 			270*490

 			Gas pressure
(Mpa)
 			0.4-0.6

 			Gas consumption 			0.37 			0.6 			0.8 			1 			1.5 			1.8
 			Power
(kw)
 			2.2 			3.5 			3.5 			4.5 			6 			7.5
 			Dimensions
(mm)
 			1800*1900*2300 			2400*1650*2500 			2600*1920*2550 			3100*2100*2800 			3800*2800*2900 			4600*2800*2800
 			Weight(KG) 			2300 			2500 			3500 			4500 			5600 			8500



Product Tags:

3.5KW Water Rinsing Filling Machine

500BPH Water Rinsing Filling Machine

18.9L Water Filling Capping Machine

5 Gallon Water Rinsing Filling Machine Capping 3 In 1 500BPH Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	zhangjiagang aquatrin Machinery co.,ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Mold	QGF-150	QGF-300	QGF-450	QGF-600	QGF-900	QGF-1200
Filling heads	1	3	5	6	9	12
Capacity (B/H)	100	300	450	600	900	1200
Capacity (B/H)	18.9L
Barrel size (mm)	270*490
Gas pressure (Mpa)	0.4-0.6
Gas consumption	0.37	0.6	0.8	1	1.5	1.8
Power (kw)	2.2	3.5	3.5	4.5	6	7.5
Dimensions (mm)	180019002300	240016502500	260019202550	310021002800	380028002900	460028002800
Weight(KG)	2300	2500	3500	4500	5600	8500
